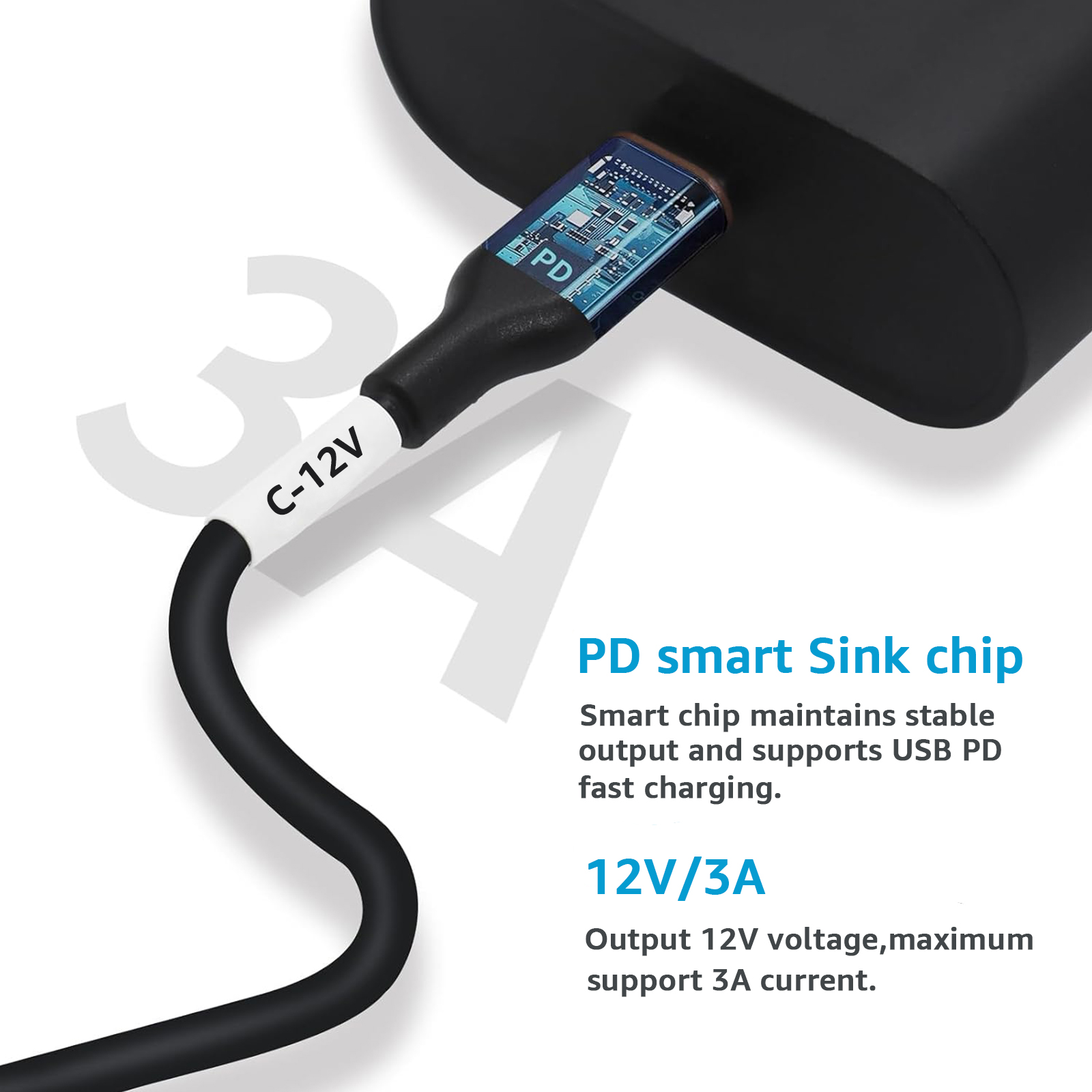

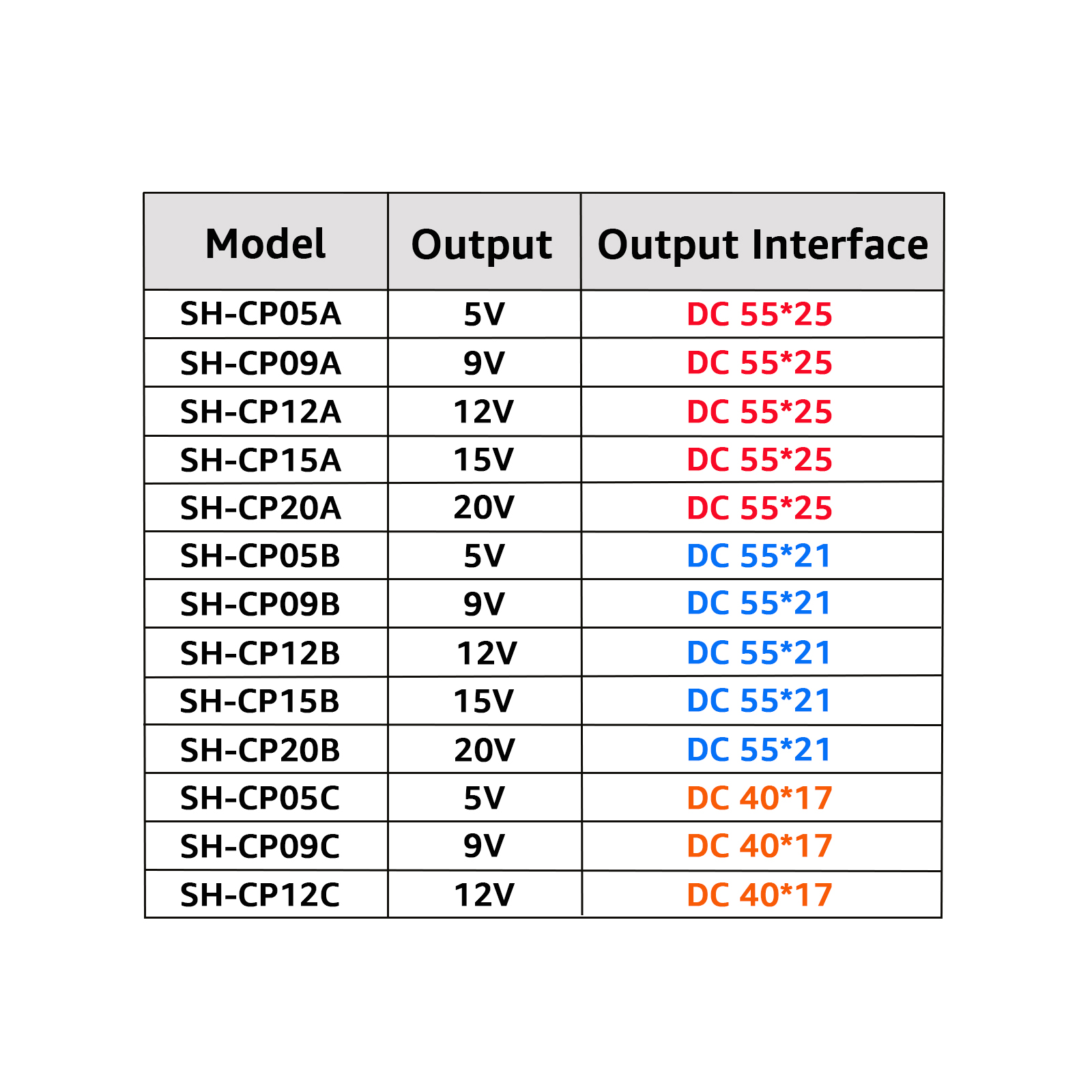

MagicConn Series:High reliability, reuse, less waste of resources is the design philosophy of MagicConn. The DSD TECH team will develop over 100 different accessories for MagicConn over the next 10 years. We try to reduce the impact on the earth's environment from the perspective of product design to cope with global warming and increasingly serious pollution. How it works:After this cable is connected to your PD charger, it sends a request to the charger for a specific voltage (e.g. 12V). Please note:If your PD charger doesn't support 12V output, it won't output 12V voltage. Please check your PD charger before purchase. Universal Barrel Plug Compatibility: Converts USB-C PD power (up to 100W) to a standard 4.0x1.7mm DC barrel plug, charging diverse non-USB-C devices.Maximum current up to 3A . 4.0x1.7mm DC Plug : Features precision-engineered 40*17mm DC connector for compatible devices. For alternate sizes: 55×21mm requires SH-CP12A ; 55×25mm requires SH-CP12B .
Technical Support & File
2, Datasheet
Convert USB-C PD to DC power : SH-CP12C delivers 12V(3A) from compatible USB-C PD chargers (supports 20W-100W). Power laptops, monitors, routers, drones, and more. Part of the eco-conscious MagicConn system designed for reuse and less waste. Includes terminal block adapter. (Cable: 1.2m/3.9ft)
Specification：
Model：SH-CP12C
Input Connector：USB Type-C Male

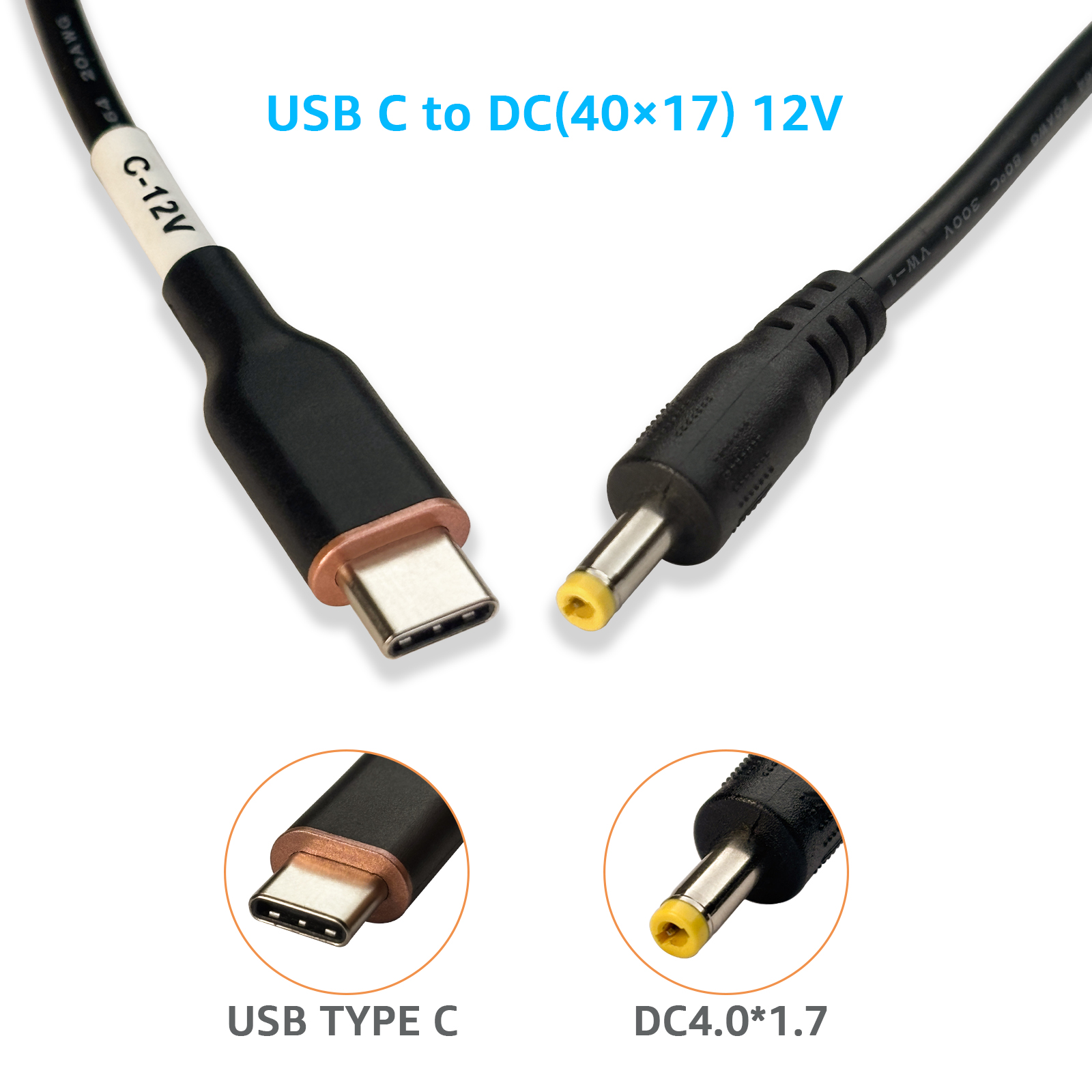

Output Connector：DC Barrel Plug (4.0 mm x 1.7 mm / 40x17)

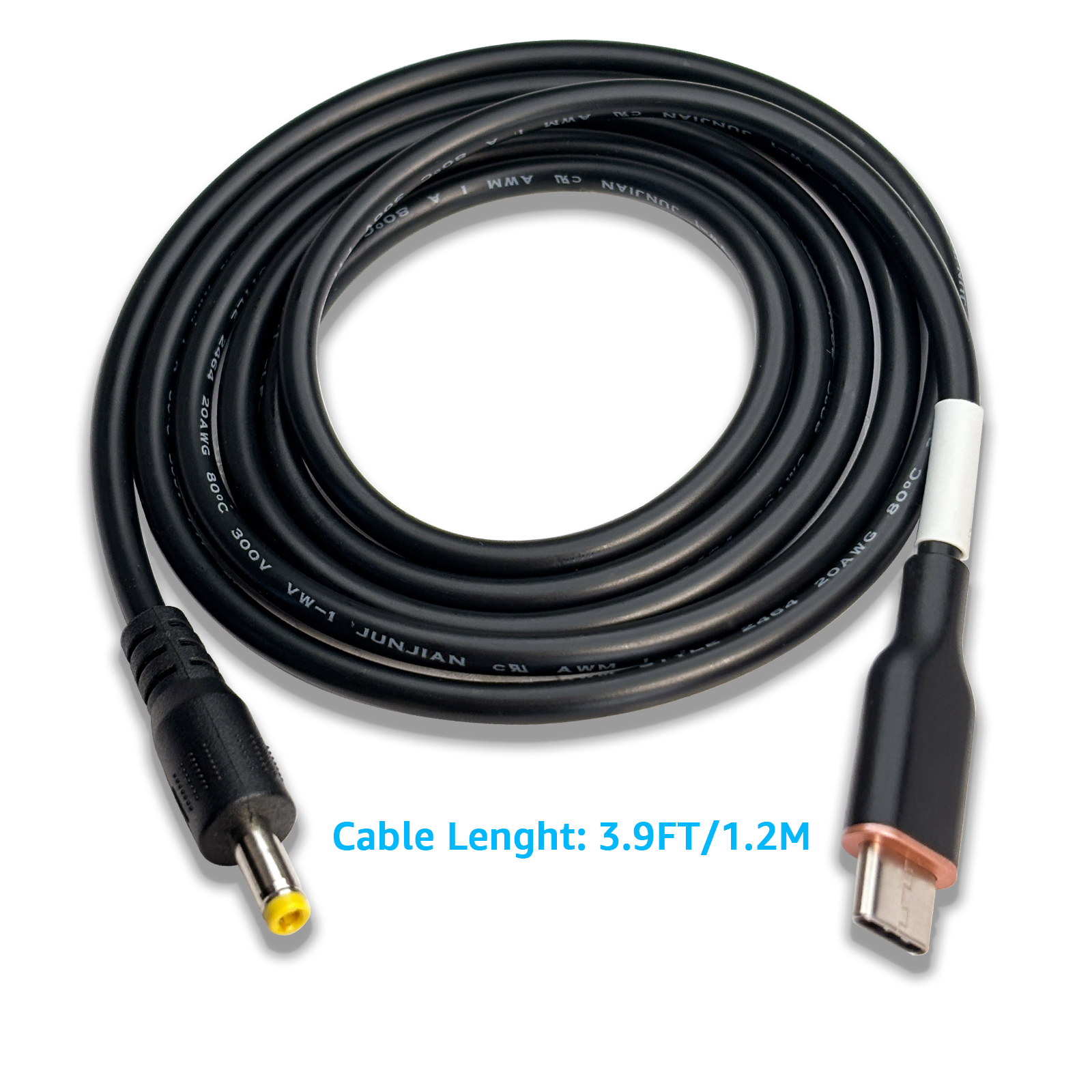

Cable Length：1.2 meters (3.9 feet)
Output Voltage：12V DC (Fixed)
Max Output Current：3A
Max Output Power：15 W Output depends on connected PD charger's capabilities
Supported Standards：USB Type-C 1.4, USB Power Delivery (PD) 3.0 v1.3
List of supported systems：
Support 100W 90W 60W 40W 20W and other power PD fast charging

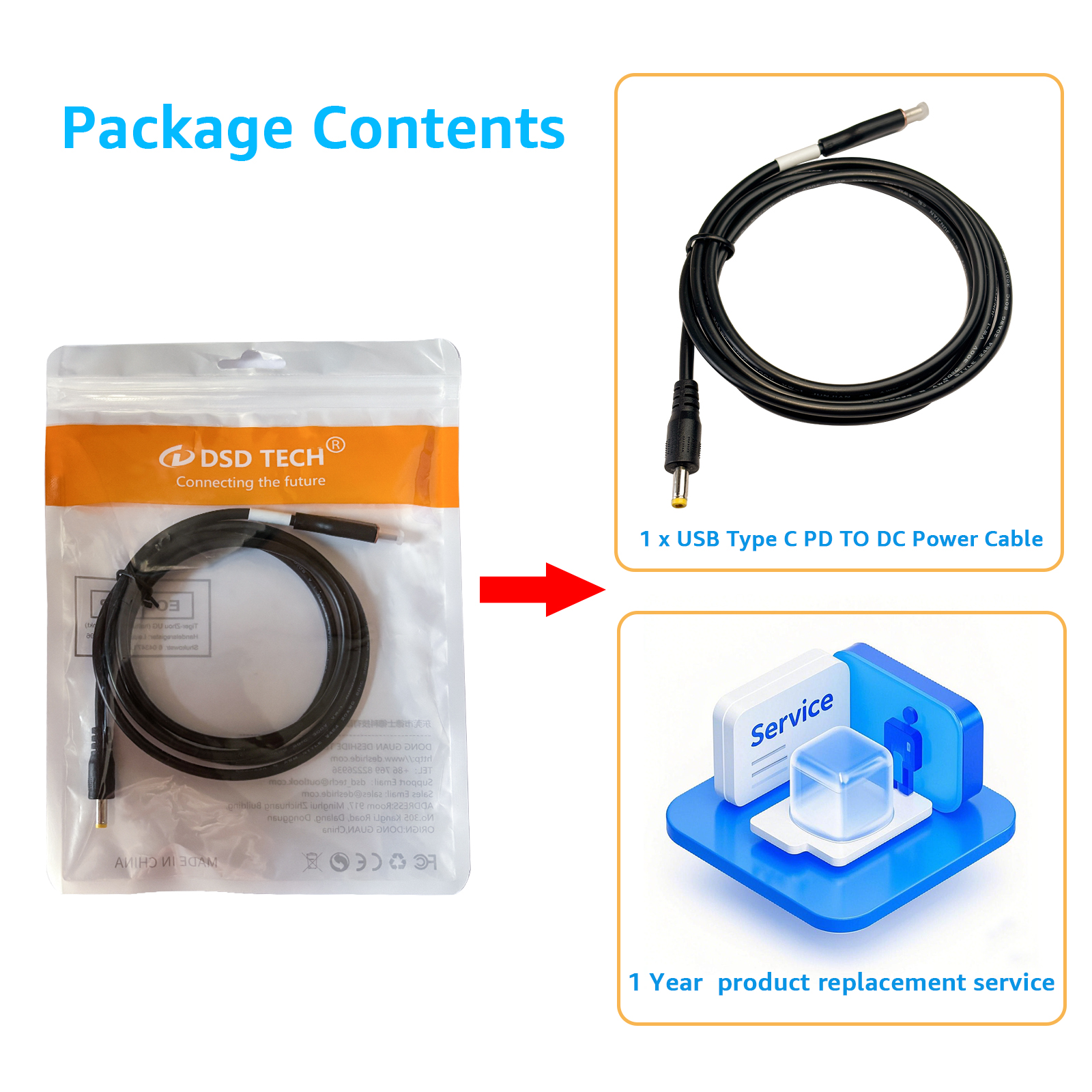

Package Contents：
1x USB-C to DC Cable (1.2m)
1x User Manual
1x DC Terminal Block Adapter
Technical Support & File
2, Datasheet
Convert USB-C PD to DC power : SH-CP12C delivers 12V(3A) from compatible USB-C PD chargers (supports 20W-100W). Power laptops, monitors, routers, drones, and more. Part of the eco-conscious MagicConn system designed for reuse and less waste. Includes terminal block adapter. (Cable: 1.2m/3.9ft)
Specification：
Model：SH-CP12C
Input Connector：USB Type-C Male
Output Connector：DC Barrel Plug (4.0 mm x 1.7 mm / 40x17)
Cable Length：1.2 meters (3.9 feet)
Output Voltage：12V DC (Fixed)
Max Output Current：3A
Max Output Power：15 W Output depends on connected PD charger's capabilities
Supported Standards：USB Type-C 1.4, USB Power Delivery (PD) 3.0 v1.3
List of supported systems：
Support 100W 90W 60W 40W 20W and other power PD fast charging
Package Contents：
1x USB-C to DC Cable (1.2m)
1x User Manual
1x DC Terminal Block Adapter
