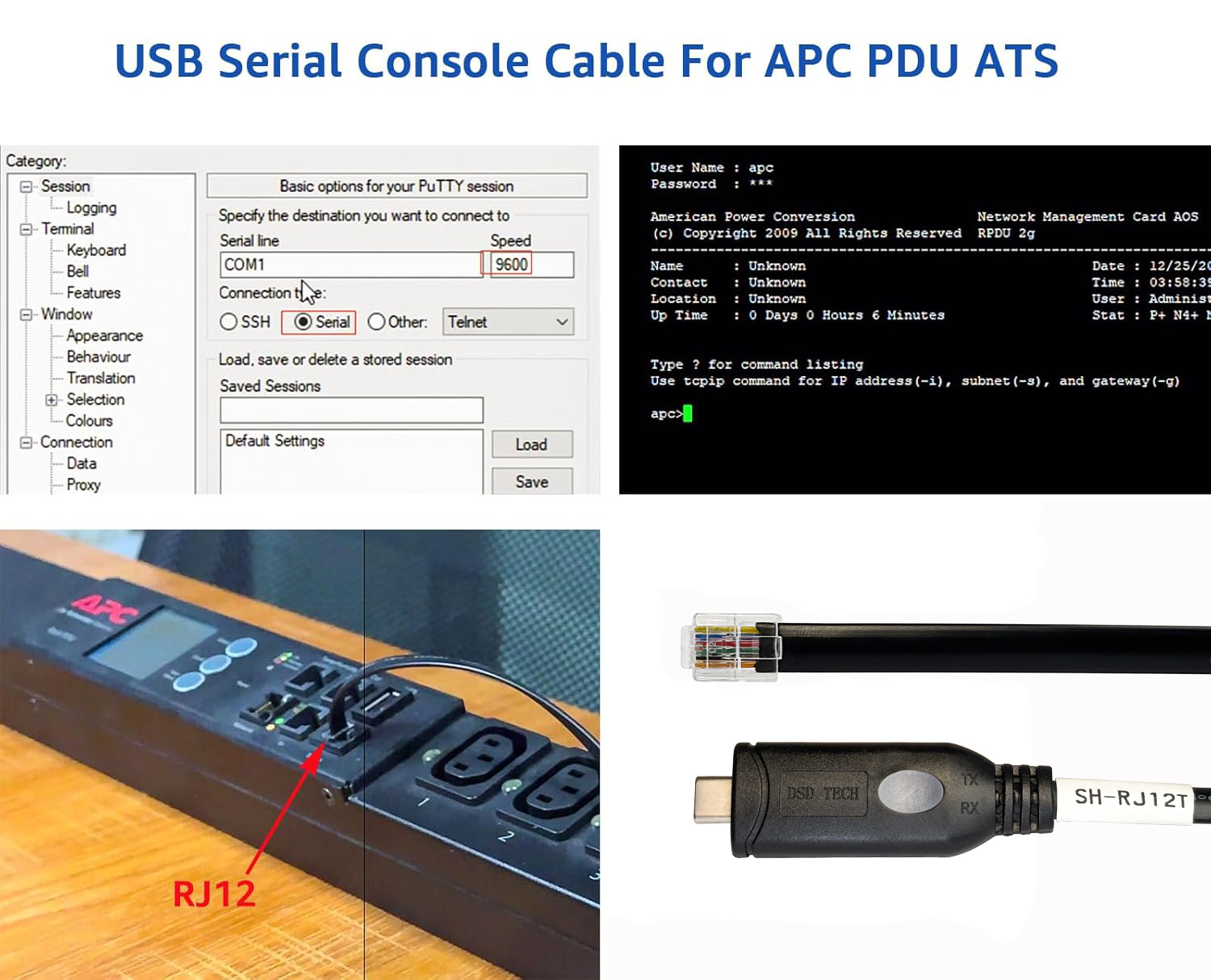

USB-C to RJ12/RJ11 Serial Adapter: Connect any USB-C laptop or device directly to 6P4C RS232 ports (RJ12/RJ11) for seamless APC PDU and ATS configuration, debugging, and management. APC OEM Replacement Cable:Serves as a direct replacement for APC Part #940-0144A, fully compatible with AP77XX, AP78XX, AP79XX, AP86XX, AP88XX and AP89XX series units. Broad OS Compatibility & Plug-and-Play Setup:Works out of the box on Windows 7/8/10/11, macOS, and Linux. One-time driver installation ensures quick, hassle-free deployment for IT pros. Note: This RS232 cable may not suit your device due to its specific pinout (NULL, GND, Tx, Rx, GND, NULL). Devices often vary in wiring requirements. If incompatible, you can adjust the wires or contact us for a custom cable.
Technical Support & File
2, Datasheet

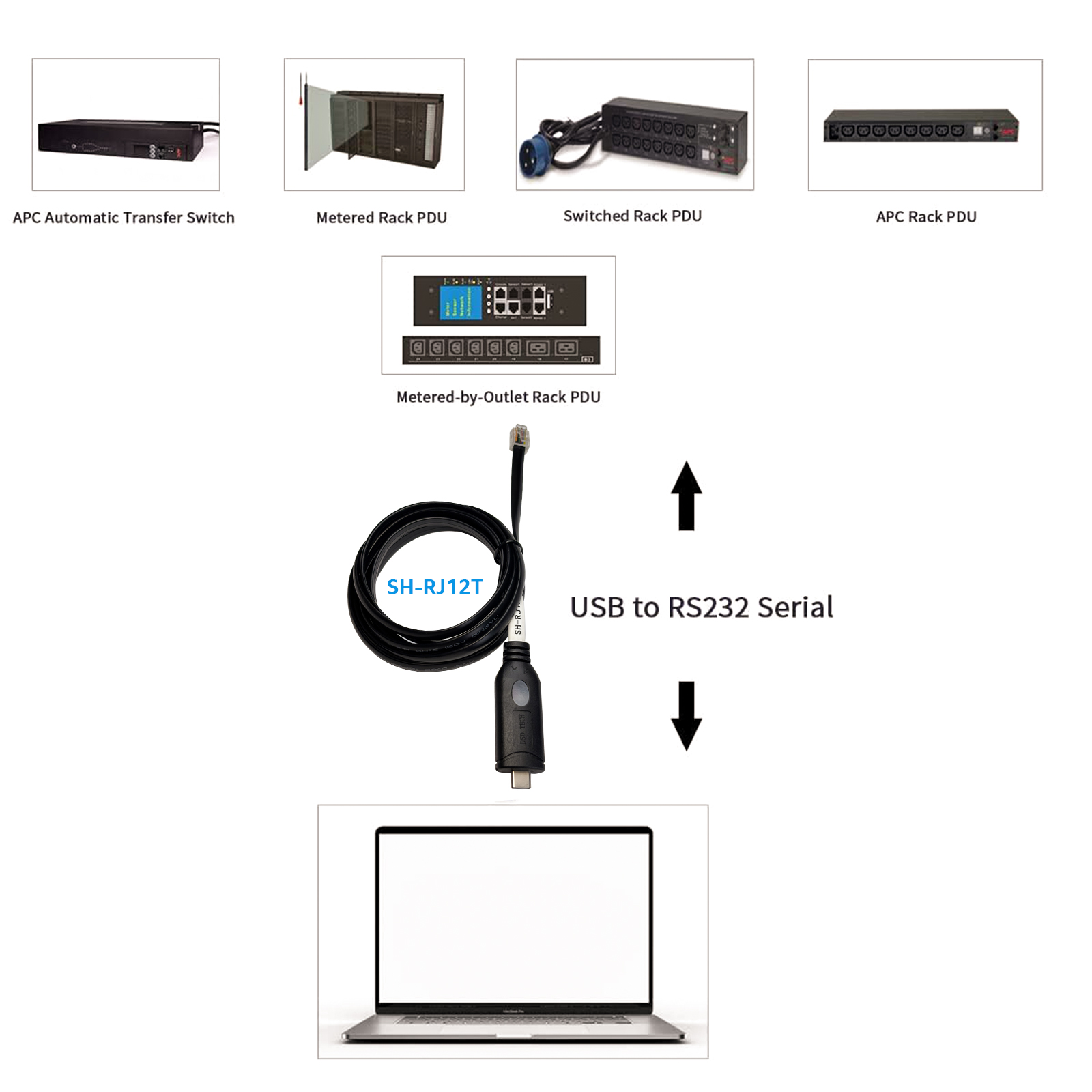

SH-RJ12T is a USB-C to RJ12 6P4C RS232 serial cable. It provides a direct connection from modern laptops to APC PDU and ATS units (AP78XX, AP79XX, etc.) for configuration and management. This plug-and-play cable, compatible with Windows, Mac, and Linux, is a reliable replacement for APC part #940-0144A.
Specification
Model:SH-RJ12T
Main Chip:PL2303GT
Communication Protocol:RS232

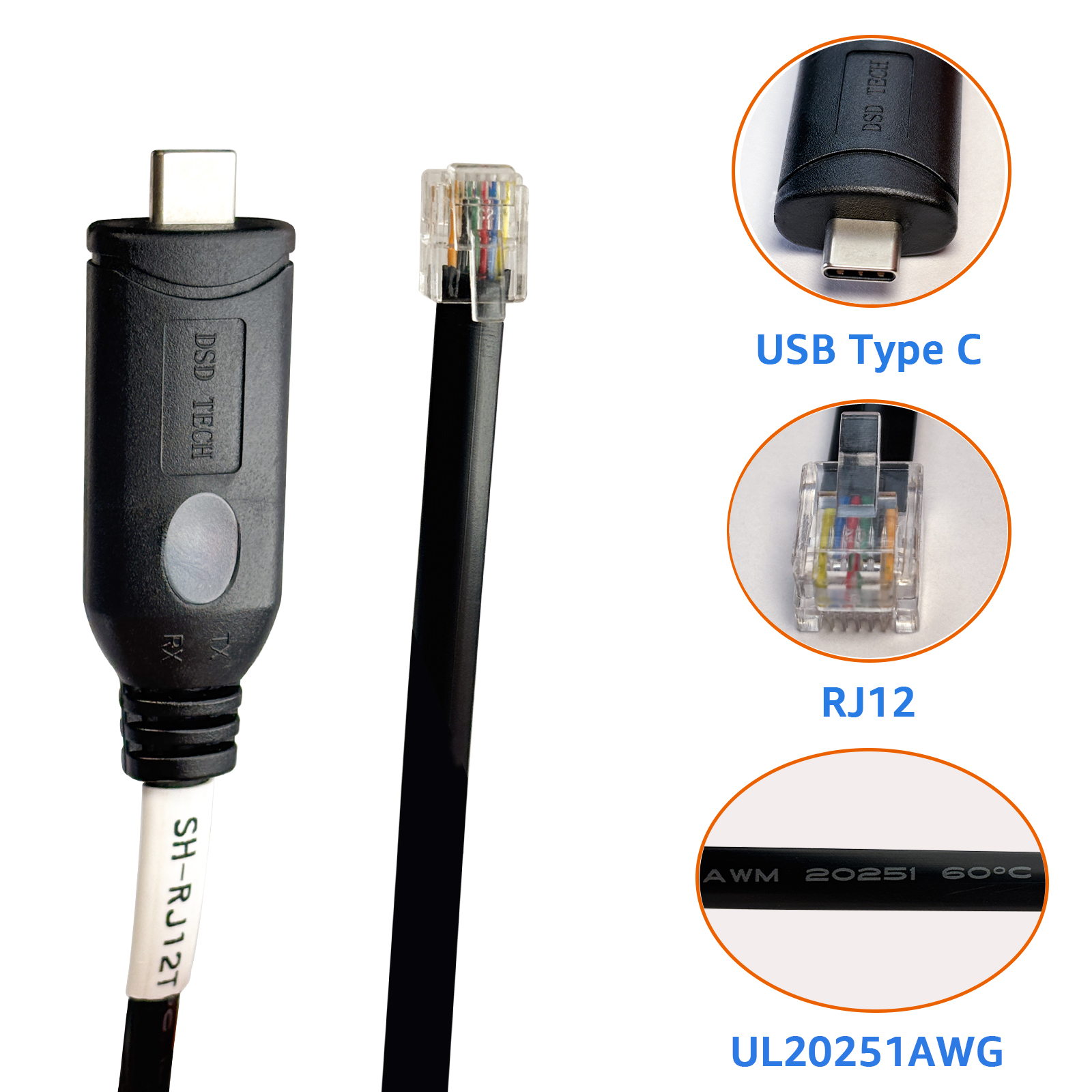

USB Connector:USB Type C
Max Speed:1 Mbps

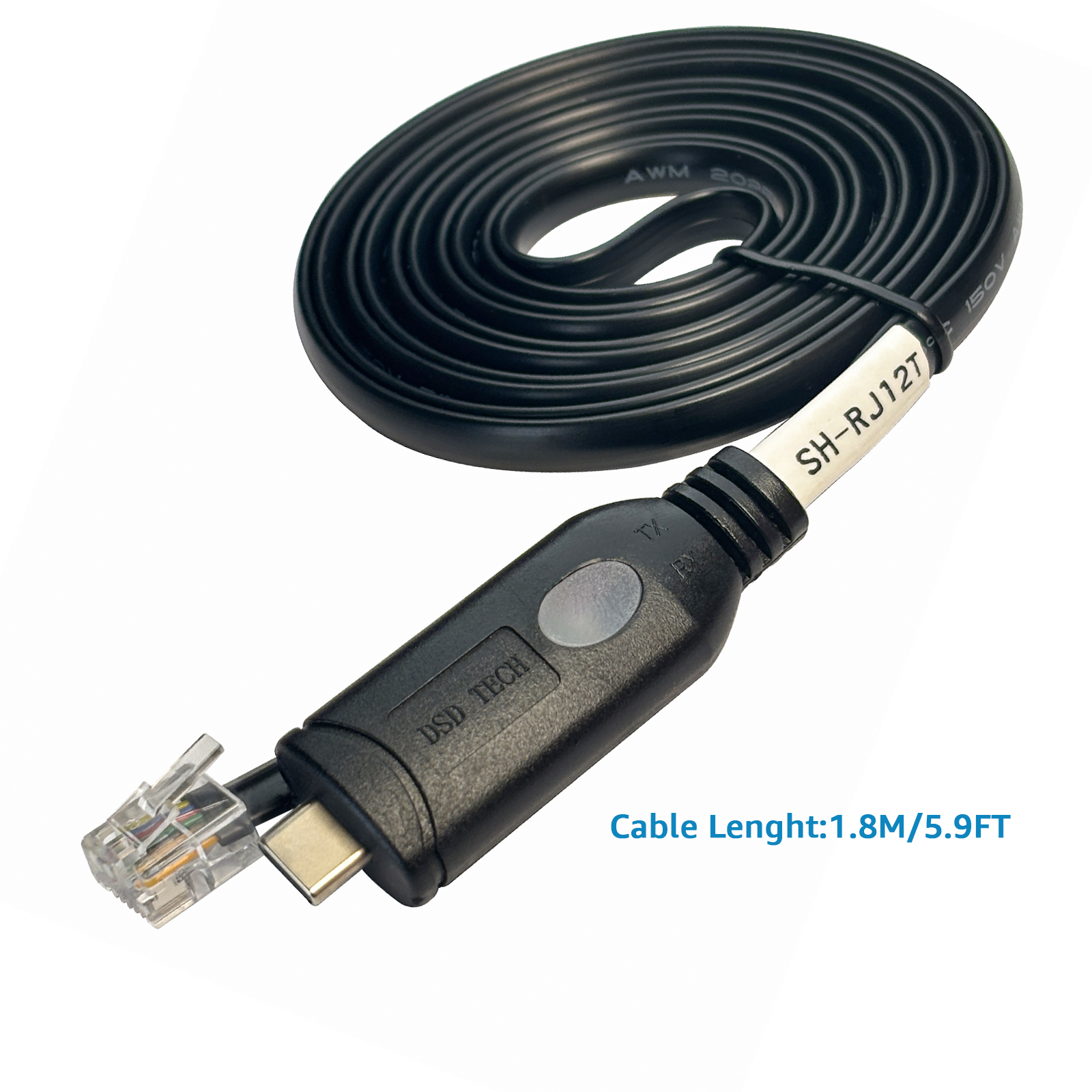

Cable Length:1.8 Meters / 5.9 Feet
Pin Definition:GND, TX, RX, GND

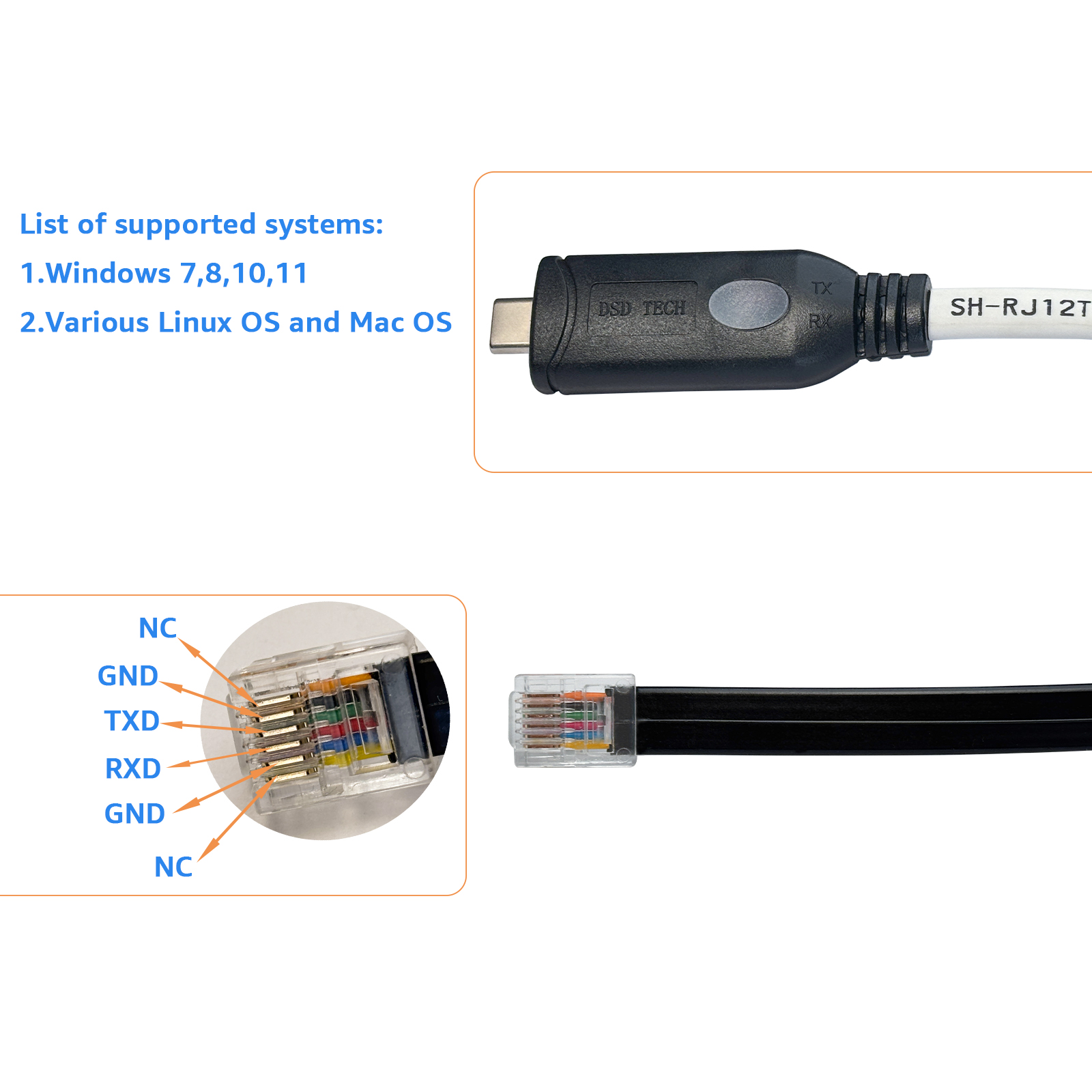

Line Sequence:NULL, GND, TX, RX, GND, NULL (6P4C)
Compatible Devices:APC PDUs/ATS (AP78XX, AP79XX, AP86XX, AP88XX, AP89XX, etc.)
Replaces APC Part:#940-0144, #940-0144A
Supported Systems:Windows 7/8/10/11, Linux, macOS
Driver Requirement:Plug & Play after one-time driver installation
List of supported systems
Windows 7/8/10/11, Linux, macOS

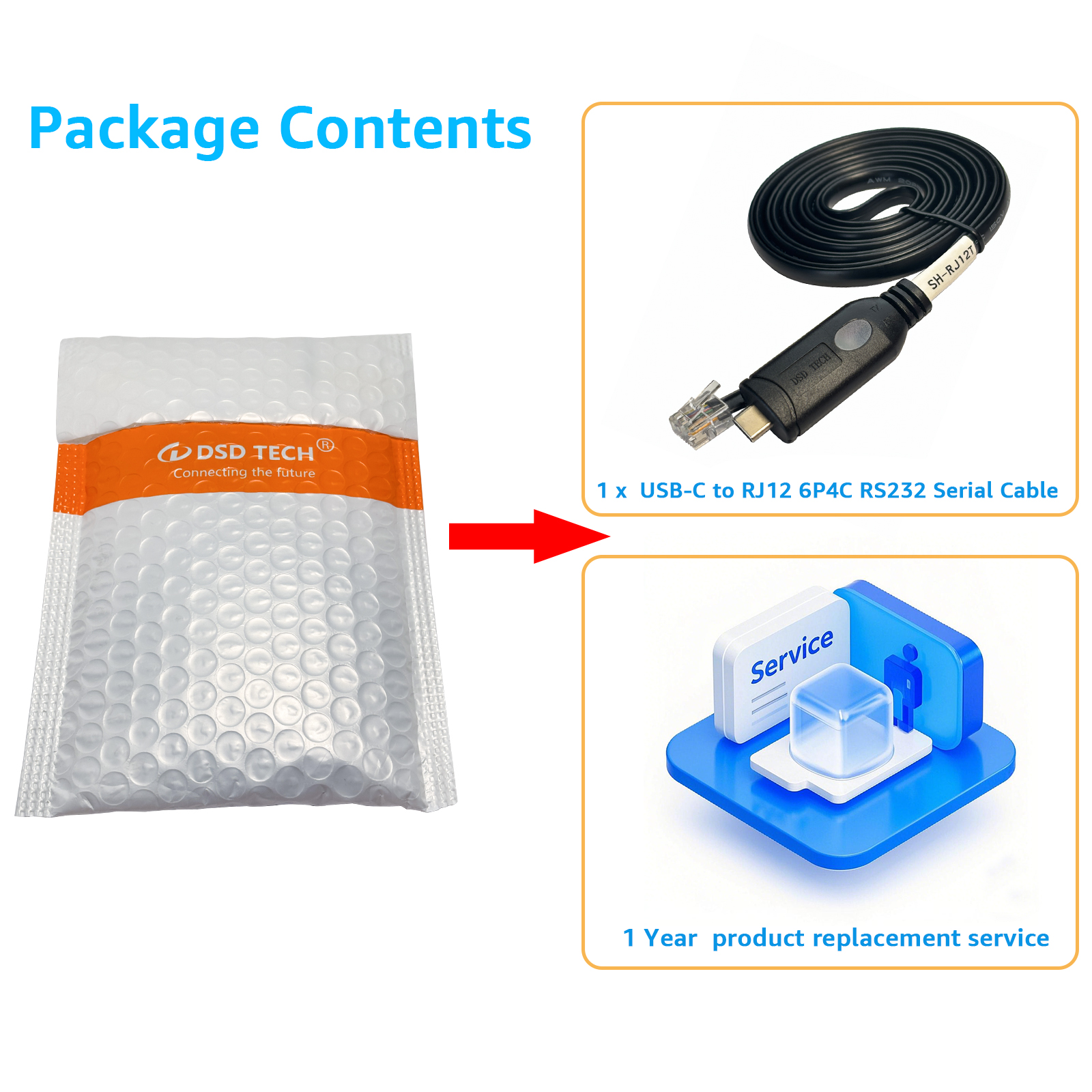

Included
1 × SH-RJ12T Cable
1 × User Manual
