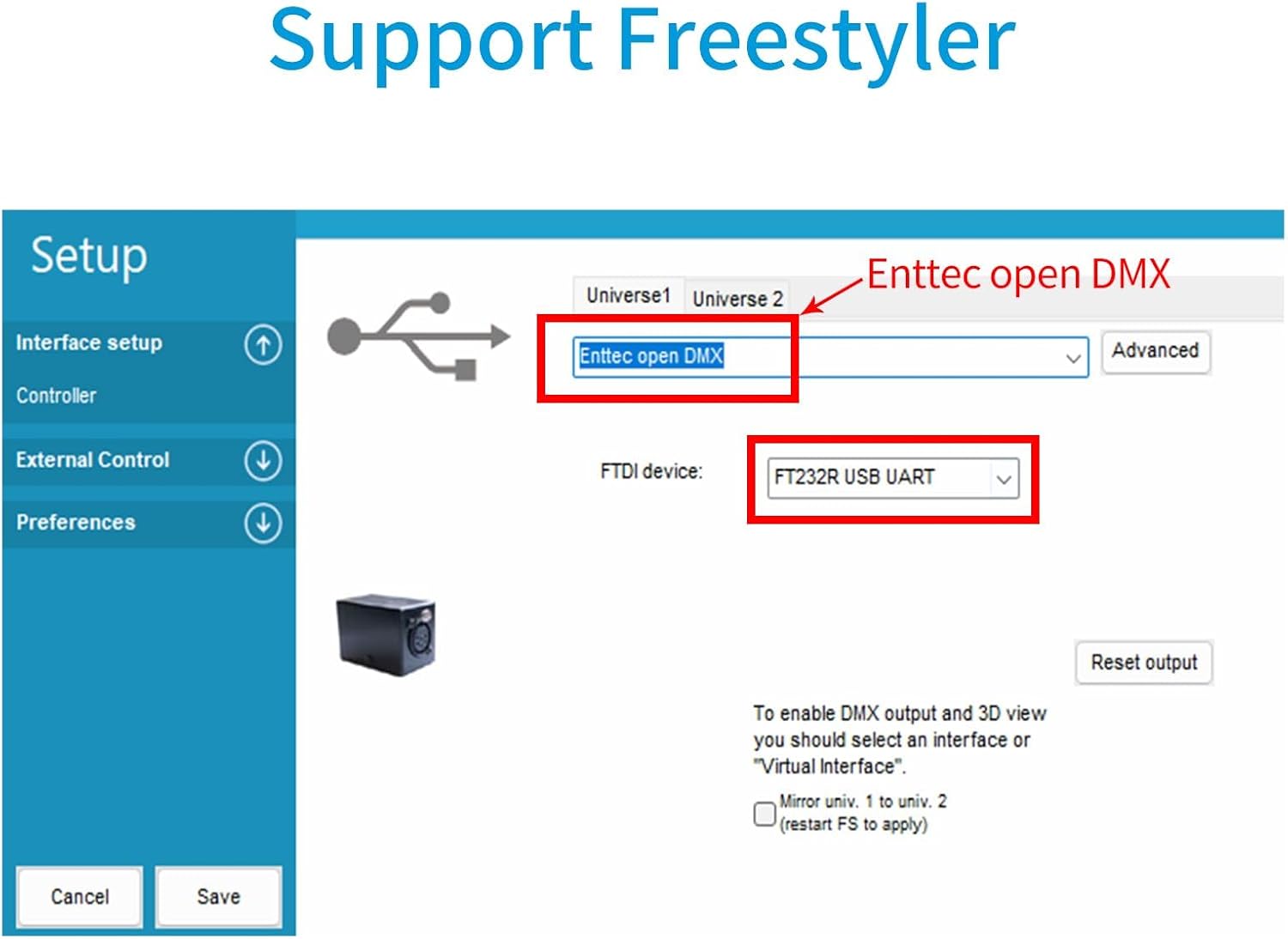

Seamless USB-C Connectivity: Designed to connect effortlessly with USB-C laptops and tablets, enabling convenient on-the-go DMX512 lighting management for gigs, bands, small events, and stage setups without needing extra adapters. Powered by Reliable FTDI Chip : Features a built-in FTDI chip for driver-free installation and broad compatibility across Windows, Linux, Mac OS, and popular lighting software like Freestyler, QLC+, and Pi Open Lighting—get started instantly with no technical headaches. Portable and Lightweight Design : This compact USB-C to DMX adapter with a 5.9-foot cable is ideal for DJs, bands, and mobile event organizers, eliminating the need for bulky, heavy controllers while maintaining full functionality. Cost-Effective Solution for Creative Automation: Ditch expensive dedicated controllers and unlock affordable creativity—leverage Freestyler's free software with pre-built scenes, custom automation, and a vast fixture library to bring your lighting visions to life
Technical Support & File
1, Support File
2, Datasheet
SH-RS09C USB-C to DMX512 Adapter with FTDI chip offers seamless plug‑and‑play lighting control for DJs, bands, and events. Compatible with Windows, macOS, Linux, and popular software like Freestyler and QLC+, this lightweight 1.8m cable delivers portable, cost‑effective DMX512 management without bulky controllers.
Specification
Model:SH-RS09C

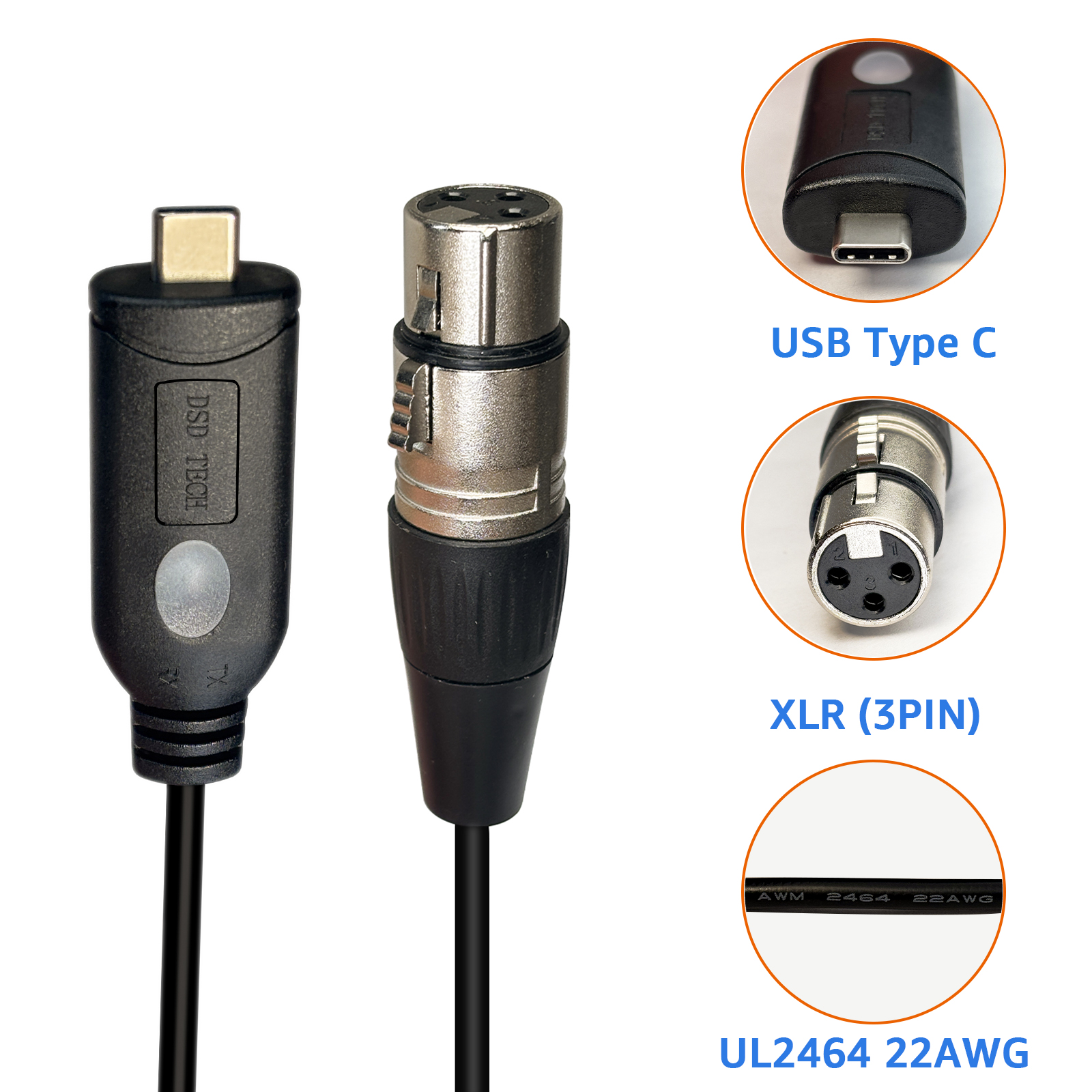

USB Interface:USB-C Male
Protocol Support:DMX512 Lighting Control Protocol
Chipset:FTDI FT232RL
Compatible Software:QLC+, Soundswitch, Freestyler,PI Open Lighting
OS Compatibility:Windows 7/8/10/11, Linux, macOS
Cable Length:180 cm / 5.9 ft
Weight:90 g / 3.17 oz
Additional Notes:Not compatible with microphone/audio use
List of supported systems
1, Windows XP, 7,8,10,11
2, Ubuntu 11.10, Kernel 3.0.0-19
3, Mac OS X 10.3 to 10.8 (32 and 64 bit).
4, Mac OS X 10.9 and above (64 bit).
Package Contents
1× USB-C DMX Adapter
1× User Manual
